obj.styles(:style=>value[, :style=>value...]) [{|obj| }] -> obj

Description

Assigns styles to the target object, which may be a container, shape, text, raster image, or pattern. Styles are presentational attributes that define how the object is rendered.

Styles yields to a block if a block is present, passing the target object as an argument. This is useful when styles is chained to a container constructor method such as g or rvg. By default, objects within a container get the styles defined on the container.

Styles returns the target object, so other methods can be chained to it.

Arguments

The argument is a hash. The hash keys are style name symbols. The hash values are the style values. RVG supports the following style names.

:clip_path
An outline used to clip a shape or collection of shapes. The value is an clipping path.
:clip_rule
If the clip_path style is used, how to determine if a point is inside or outside a the clip path. The value is a string, either 'nonzero' or 'evenodd'. The default is 'nonzero'. See the fill_rule example below.
:fill
The fill color. The value must be a color name or a pattern. The default is 'black'.
:fill_opacity
The opacity of the fill color. A number between 0.0 (fully transparent) and 1.0 (fully opaque). The default is 1.0
:fill_rule
How to determine if a point is inside or outside a shape. The value is a string, either 'nonzero' or 'evenodd'. The default is 'nonzero'.
The following descriptions of 'nonzero' and 'evenodd' are from the SVG 1.1 standard.
nonzero
This rule determines the "insideness" of a point on the canvas by drawing a ray from that point to infinity in any direction and then examining the places where a segment of the shape crosses the ray. Starting with a count of zero, add one each time a path segment crosses the ray from left to right and subtract one each time a path segment crosses the ray from right to left. After counting the crossings, if the result is zero then the point is outside the path. Otherwise, it is inside.
evenodd
This rule determines the "insideness" of a point on the canvas by drawing a ray from that point to infinity in any direction and counting the number of path segments from the given shape that the ray crosses. If this number is odd, the point is inside; if even, the point is outside.
See the examples below.
:opacity
Both the stroke and the fill opacity. A number between 0.0 (fully transparent) and 1.0 (fully opaque). The default is 1.0. See below for an example.
:stroke
The stroke color. The value must be a color name or a pattern. The default is 'none', that is, transparent black ("#000000ff").
:stroke_dasharray
An array of numbers that specify the length of the dashes and gaps with which to draw a dashed line. If the array contains an odd number of values, the values are repeated to produce an even number of dashes and gaps. The numbers are in user coordinates. By default all lines are drawn as solid lines. See below for an example.
:stroke_dashoffset
Normally a dashed line is drawn using the first number in the stroke_dasharray as the length of the first dash. This style can be used to specify a different starting point in the array.
:stroke_linecap
The shape of the end of a line. The value may be one of the strings 'butt', 'round', or 'square'. The default is 'butt'. See below for an example.
:stroke_linejoin
The shape of the corner where two lines are joined. The value may be one of the strings 'miter', 'round', or 'bevel'. The default is 'miter'. See below for an example.
:stroke_miterlimit
If the stroke_linejoin value is 'miter', a number specifying the ratio of the miter to the thickness of the lines being joined. When the limit is exceeded the join is converted from a miter to a bevel. The value must be a number greater than or equal to 1.0. The default is 4.0.
:stroke_opacity
The opacity of the stroke color. A number between 0.0 (fully transparent) and 1.0 (fully opaque). The default is 1.0 unless stroke has the default value 'none'.
:stroke_width
The thickness of the stroke. The default is 1 user coordinate.

(Text styles are described with the Text class.)

Examples

:fill=>'#00ff00', :stroke=>'blue', :stroke_width=>8stroke and fill example

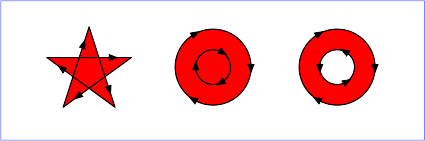

:fill_rule=>'nonzero'nonzero example

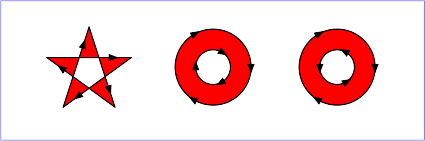

:fill_rule=>'evenodd'evenodd example

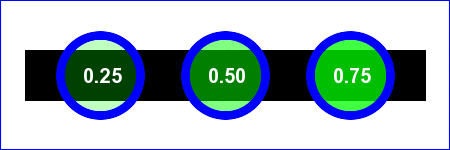

Three values of :opacityopacity example

:stroke_dasharray=>[10,5]stroke_dasharray example

Three values of :stroke_linecapstroke_linecap example

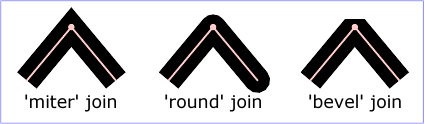

Three values of :stroke_linejoinstroke_linejoin example

Returns

obj
