About the transform methods

Transform methods

About the transform methods

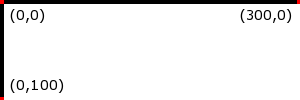

The default coordinate system has its origin in the upper-left corner. The positive x-axis extends to the right. The positive y-axis extends downward. You can change this coordinate system by using one or more of the transform methods described on this page. This image shows the default coordinate system.

initial coordinates example

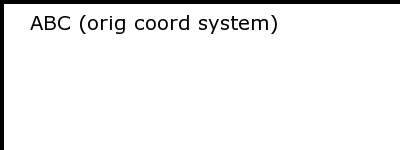

This image shows a drawing without transformations.

a drawing without transformations

The transform methods are defined in the RVG, RVG::Group, and RVG::Use classes. You can also chain these methods to the shape methods and to the image method.

Transform methods

matrix

obj.matrix(sx, rx, ry, sy, tx, ty) -> obj

Description

Replaces the current transformation matrix with a new matrix having the specified values. See the SVG standard for more information.

Arguments
sx, sy
The scale factor in the x-dimension and y-dimension, measured in user coordinates.
rx, ry
The amount of rotation about the x-axis and y-axis, measured in degrees.
tx, ty
The translation on the x-axis and the y-axis, measured in user coordinates.

rotate

obj.rotate(angle[, cx, cy]) -> obj

Description

Rotates the axes about the origin or, if cx and cy are present, about the specified point.

Arguments
angle
The amount of rotation. Positive angles rotate clockwise, negative angles rotate counter-clockwise.
cx, cy
If present, the point to rotate about.
Example

See scale.

scale

obj.scale(sx[, sy]) -> obj

Description

Scales the axes.

Arguments
sx
The amount of scaling on the x-axis.
sy
If present, the amount of scaling on the y-axis. Otherwise defaults to sx.
Example

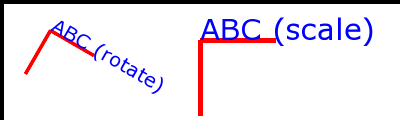

rotate and scale example

skewX

obj.skewX(angle) -> obj

Description

Skews the x-axis.

Arguments
angle
The skew amount, measured in degrees.
Example

See skewY

skewY

obj.skewY(angle) -> obj

Description

Skews the y-axis.

Arguments
angle
The skew amount, measured in degrees.
Example

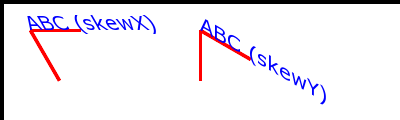

skewX and skewY example

translate

obj.translate(tx[, ty]) -> obj

Description

Moves the origin.

Arguments
tx
The location of the new origin on the x-axis.
ty
The location of the new origin on the y-axis. If omitted, defaults to tx.
Example

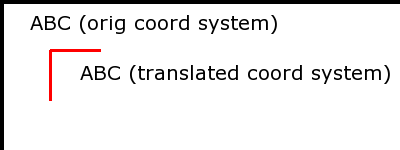

translate example
