Drawing with RVG

A tutorial

duck|type

Introduction

RVG is the newest addition to RMagick. RVG (Ruby Vector Graphics) is a facade for RMagick's Draw class that supplies a drawing API based on the Scalable Vector Graphics W3C recommendation.

RVG is a scalable vector drawing library. Scalable means that drawings are not fixed to a single size in pixels. The same drawing can be rendered for a screen display or for printing. Vector images are drawn using geometric objects like lines and circles. Unlike raster images, vector images don't get "pixelated" when you make them bigger.

As an introduction to the RVG library, let's see how to draw this little duck on the left. Here is the complete program.
 1  require 'rvg/rvg'
 2  include Magick
 3
 4  RVG::dpi = 72
 5
 6  rvg = RVG.new(2.5.in, 2.5.in).viewbox(0,0,250,250) do |canvas|
 7      canvas.background_fill = 'white'
 8
 9      canvas.g.translate(100, 150).rotate(-30) do |body|
10          body.styles(:fill=>'yellow', :stroke=>'black', :stroke_width=>2)
11          body.ellipse(50, 30)
12          body.rect(45, 20, -20, -10).skewX(-35)
13      end
14
15      canvas.g.translate(130, 83) do |head|
16          head.styles(:stroke=>'black', :stroke_width=>2)
17          head.circle(30).styles(:fill=>'yellow')
18          head.circle(5, 10, -5).styles(:fill=>'black')
19          head.polygon(30,0, 70,5, 30,10, 62,25, 23,20).styles(:fill=>'orange')
20      end
21
22      foot = RVG::Group.new do |_foot|
23          _foot.path('m0,0 v30 l30,10 l5,-10, l-5,-10 l-30,10z').
24                styles(:stroke_width=>2, :fill=>'orange', :stroke=>'black')
25      end
26      canvas.use(foot).translate(75, 188).rotate(15)
27      canvas.use(foot).translate(100, 185).rotate(-15)
28
29      canvas.text(125, 30) do |title|
30          title.tspan("duck|").styles(:text_anchor=>'end', :font_size=>20,
31                         :font_family=>'helvetica', :fill=>'black')
32          title.tspan("type").styles(:font_size=>22,
33                 :font_family=>'times', :font_style=>'italic', :fill=>'red')
34      end
35      canvas.rect(249,249).styles(:stroke=>'blue', :fill=>'none')
36  end
37
38  rvg.draw.write('duck.gif')

Summary

All drawings follow the same 3 steps:

  1. Create an RVG object. Specify the width and height of the final image. The RVG.new method yields to a block.
  2. Within the block, call methods on the RVG object to specify a background, add shapes, text, or raster images, or add groups of shapes, text, or raster images.
  3. Call the draw method to draw the shapes, text, or raster images onto the background.

I'll step through the example line-by-line.

Lines 1-3

 1   require 'rvg/rvg'
 2   include Magick

These are just the usual Ruby code to load the RVG extension. To save some typing, I've included the Magick module into Object's namespace.

Lines 4-6

 4   RVG::dpi = 72
 5
 6   rvg = RVG.new(2.5.in, 2.5.in).viewbox(0,0,250,250) do |canvas|

RVG::dpi enables the use of unit methods in RVG. When you set RVG::dpi to a non-nil value, RVG adds a number of conversion methods to the Fixnum and Float classes . These methods allow you to specify measurements in units such as inches, millimeters, and centimeters. DPI stands for "dots per inch," the image resolution. Here I set RVG::dpi to 72, a common value for displays.

The RVG.new method accepts 2 parameters. These parameters specify the width and height of the final image in pixels. Since I've defined RVG::dpi, I can specify these values in inches using the in conversion method. At 72dpi, the final image will be 2.5*72=180 pixels on a side.

By default, RVG uses pixels as its unit of measurement, but since I'm drawing a scalable picture I don't want to confine myself to pixels. The viewbox method defines a coordinate system with a logical unit. Viewbox takes 4 parameters, min_x, min_y, width, and height. On line 6 I define my coordinate system to have its origin at (0,0) and a width and height of 250 units. By using my own coordinate system, I can later change the size of the image to 5 inches square or 1 inch square just by changing the arguments to new.

default coordinate system

The default coordinate system

By default, the RVG coordinate system has its origin in the upper-left corner. The x-axis proceeds to the right. The y-axis proceeds downwards. The image on the left shows the axes of this coordinate system. I've added a light-blue "graph-paper" background to the example images to help associate the coordinate arguments to the actual locations in the image. Just remember that the axes and graph-paper background are not actually part of the image I'm producing.

The RVG class is one of the container classes defined by RVG. Container objects can contain graphic objects such as circles and lines, text, raster images, and other container objects. The outermost container is always an RVG object. I will add all the graphic objects that form the duck to this container.

Container constructors normally yield to a block. However, here I've chained viewbox to new, so viewbox takes responsibility for yielding and passes the new instance of RVG to the canvas argument.

Line 7

 7       canvas.background_fill = 'white'

By default, RVG graphics are drawn on a transparent background. This is convenient when you want to display your image over another image. You can override the default background color by assigning a color to the background_fill= attribute. Here I set the background color to "white."

Lines 9-13

 9      canvas.g.translate(100, 150).rotate(-30) do |body|
10          body.styles(:fill=>'yellow', :stroke=>'black', :stroke_width=>2)
11          body.ellipse(50, 30)
12          body.rect(45, 20, -20, -10).skewX(-35)
13      end

There's a lot going on in these few lines - seven method calls - so let's take it one method at a time.

Groups

Group is the second container class in RVG. The purpose of a group is to associate a set of coordinate system transformations and a set of styles with the graphic objects within the group. To create a Group object within another container, call the g method on the container. The g method yields if a block is present. In this example, there is no block associated with g, so g returns the new group. The g method adds the group to the content of its container. In this example, the group's container is the canvas object created in line 6. The graphic objects in the group are drawn as part of drawing the container. The translate and rotate chained to g modify the group by adding coordinate system transforms.

(Okay, there is a block, but there are 2 method calls between g and the block. I'll explain more later.)

Transforms

I'm going to use this group to contain the ellipse that forms the duck's body and the rectangle that forms the wing. I could just specify x- and y-coordinates to position these shapes relative to the origin, but it's easier to move the origin to where I want to draw the shapes. This is the purpose of the translate method. This method moves the origin to the (x,y) position specified by its arguments. I call translate on the group object, and since the content of the group gets the coordinate system transformations specified for the group, the ellipse and the rectangle will be drawn on a coordinate system with the origin at (100, 150) relative to the old coordinate system.

Also, I want the duck's body to slant upward, so I use the rotate method to rotate the axes. The argument to rotate is the number of degrees of rotation. A negative number indicates counter-clockwise rotation.

After translating and rotating the coordinate system, the axes look like this:

duck body

The transform methods

There are six transform methods. In addition to translate and rotate, there's scale, skewX, skewY, and matrix. When groups are nested, any transforms defined on the inner group(s) are added to the outer transforms.

Styles

Recall that the styles method modifies the default group styles. The styles method takes a hash as an argument. The hash keys are style names, and the hash values are, well, style values. In this example there are three style names. The :fill style sets the fill color to 'yellow'. The :stroke style sets the outline color to 'black'. The :stroke_width style sets the width of the outline to 2. I want the styles to apply to all objects within the group so in line 10 I call styles on the new group object.

The styles method is a real workhorse. It's defined in almost every class in RVG and there are many other style names in addition to these three..

Basic shapes

The group contains two basic shapes, an ellipse and a rectangle. I add the ellipse to the group with the ellipse method. Ellipse has four parameters. The first two, the radius on the x-axis and the radius on the y-axis, are required. The last two are the (x,y) coordinate of the center. When these are omitted, as here, they default to (0,0). I add the rectangle with the rect method, which also has four parameters. The first two are the width and height of the rectangle. The last two are the (x,y) coordinate of the upper-left corner. Both of these methods return self, so you can chain other methods to them.

Here's what the group looks like when rendered. The ellipse is centered on the origin. The upper-left corner of the rectangle is slightly up and to the left of the origin.

default coordinate system

The shape methods

There are 7 shape methods. In addition to ellipse and rect, there's circle, line, path, polygon, and polyline. You can also think of text as a shape. Shapes are stroked and filled, and can be modified by the transform methods and the styles method.

SkewX

Everybody knows that a wing doesn't look like a rectangle! A wing looks like a slanted parallelogram. (Well, it does in this example!) Fortunately, I can use the transform methods on shapes as well as containers. The skewX method makes it easy for us to give the rectangle a slant. The skewX method is another transform. It takes a single argument, the number of degrees to skew the x-axis. Since all the shape constructors, including rect, return self, I can chain skewX directly to rect and limit the effect of the transform to just the rectangle. The result looks like this. (I've drawn in the axes for the wing coordinate system.)

duck wing

That's it for the body. Let's tie up one loose end before moving on. I said earlier that container constructors (such as g) yield to a block if present. In this case, though, the translate and rotate methods intervene between g and the block. All the transform methods yield when there is an associated block, so I can easily chain them to a container constructor and still use a block argument to define the graphic objects in the group. Method chaining is a common RVG idiom. You'll see it a lot in the examples.

The next group draws the head.

Lines 15-20

15      canvas.g.translate(130, 83) do |head|
16          head.styles(:stroke=>'black', :stroke_width=>2)
17          head.circle(30).styles(:fill=>'yellow')
18          head.circle(5, 10, -5).styles(:fill=>'black')
19          head.polygon(30,0, 70,5, 30,10, 62,25, 23,20).styles(:fill=>'orange')
20      end

This section is very similar to the previous one. I'm defining a group to contain the graphic objects that draw the duck's head, eye, and beak. First I use the translate method to move the origin to (130,83):

duck head

In line 16 I define the stroke and stroke_width styles on the group. Styles defined on the group propogate to shapes within the group unless you override them. To do that, call styles on the shapes. In this group each shape has its own fill color. The yellow circle forms the head. The circle method takes 3 parameters. The first parameter is the radius of the circle. The other two parameters are the (x,y) coordinate of the center. If omitted, as here, they default to (0,0). I use a small black circle for the eye.

Last, I use the polygon method to draw the beak. This method draws a polygon from a series of (x,y) coordinates. If the last coordinate is not the same as the first, polygon implicitly adds it to close the polygon. Again, I use styles to set the fill color to orange.

duck head final

Lines 22-25

22      foot = RVG::Group.new do |_foot|
23          _foot.path('m0,0 v30 l30,10 l5,-10, l-5,-10 l-30,10z').
24                styles(:stroke_width=>2, :fill=>'orange', :stroke=>'black')
25      end

Here I create a group by directly calling new instead of calling the g method on a container. This creates a group object that is not contained within the canvas. You might think of the foot as not being attached to anything, like this:

duck foot

Lines 26-27

26       canvas.use(foot).translate(75, 188).rotate(15)
27       canvas.use(foot).translate(100, 185).rotate(-15)

To add the group to the canvas I use the use method. The use method can accept any container or graphic object as an argument. Optionally you can specify an (x,y) coordinate that specifies where to position the objects. In this example, however, I let those arguments default to (0,0) and use translate to position the feet. Here's how the left foot attaches to the duck:

duck foot 2

Of course, the duck is walking, so I have to give the foot a little slant with rotate:

duck foot 3

Attaching the right foot is easy. Call use again but give different arguments to translate and rotate:

final duck foot

Lines 29-34

29      canvas.text(125, 30) do |title|
30          title.tspan("duck|").styles(:text_anchor=>'end', :font_size=>20,
31                         :font_family=>'helvetica', :fill=>'black')
32          title.tspan("type").styles(:font_size=>22,
33                 :font_family=>'times', :font_style=>'italic', :fill=>'red')
34      end

All I need now is a title for the picture. Text in RVG is a job for the text method. Like the shape methods, text can be used with any container object. Text itself is a container, except that it can only contain text-related objects. The text method takes 2 or 3 arguments, an (x,y) pair and optionally a string. The (x,y) pair define a current text position at which rendering starts. If there is a string argument, it will be rendered starting at the current text position. Rendering text changes the current text position to the end of the text.

In the example, text is used as a container. Text objects can contain Tspan objects. Each tspan can specify its own styles. By default each tspan is rendered starting at the current text position.

As usual, I can change the appearance of the text with styles. Here I choose a font, a font style (the default is "normal"), its size in points, and the color.

duck title

Line 35

35       canvas.rect(249,249).styles(:stroke=>'blue', :fill=>'none')

I'm almost done. All I need to do it add a blue border. (I'm going to remove the graph paper background because we don't need it any more.)

duck with border

Line 38

38   rvg.draw.write('duck.gif')

The draw method call doesn't occupy a lot of space - just 4 letters - but does a lot of work. The draw method goes through all the graphics objects that I've added to the outermost RVG container and draws them on the background. When the drawing is complete, draw returns the drawing in the form of an RMagick Image object. You can use any Image class methods on the drawing. Here I simply write the image to a GIF file.

Scalable graphics

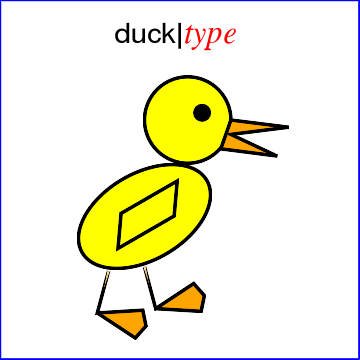

Are RVG images really scalable? Let's try. Change the RVG.new call to make an image that's 4 times as big. That's 5 inches on a side:

 6   rvg = RVG.new(5.in, 5.in).viewbox(0,0,250,250) do |canvas|

Change nothing else. Run the program again and see what you get.

big duck
